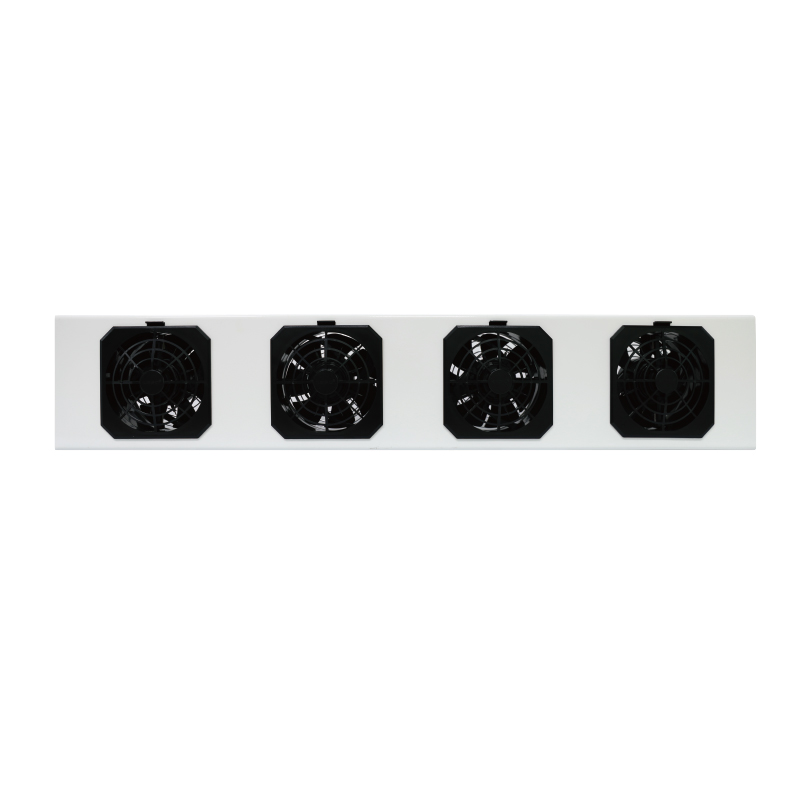

Overhead Ionizing Air Blower KF-80AR (4 Fans)

SKU: KF-80AR Category:

Product Features

① When cleaning, the fan is reversed to prevent foreign objects from blowing towards the product.

② The automatic ion balance system can achieve ion balance within 0 ± 10V.

③ Different lengths of ion fans can be selected based on the workbench and product size.

④ Equipped with automatic cleaning discharge needle function, it can reduce the frequency of daily manual cleaning and maintenance.

⑤ Equipped with complete machine locking function, wireless monitoring function, and supports two modes: LORA+NB loT.

⑥ According to the workshop environment, the cleaning and discharge needle time can be adjusted from 0 to 999 hours through LED digital display.

Technical Parameters

Technical parameters
Product model KF-80AR
Input power supply voltage DC24V
Decay normal operation indicator light If decay operation is normal,the green indicator light is on
Decay abnormal indicator light If decay operation is abnormal,the red indicator light is on
Decay time about 1.5s(300mm )
Ion balance Automatic ion balance system 0±10V
Air volume 2.97-4.07m³/min(constant air flow)
Ozone concentration Below 0.03ppm(distance 150mm)
Applied environmental temperature 0~40℃(no condensation)
Applied environmental humidity 30-70% RH (no water drop condensation)
Overall size /mm 800*82*150(exclouding stents)
Weight 4.74Kg (exclouding stents)



Anti-static test condition
Operating voltage:DC24V Test voltage:±1000V-±100V Ambient temperature:23℃±2℃
           Distance 300mm 600mm 900mm
Decay  Time Positive 1.0s/1.5s 2.0s/3.0s 3.5s/4.5s
Negative
Ion    Balance Positive 0±10v

0±15v

0±20v
Positive
