Himax Electric Screwdrivers

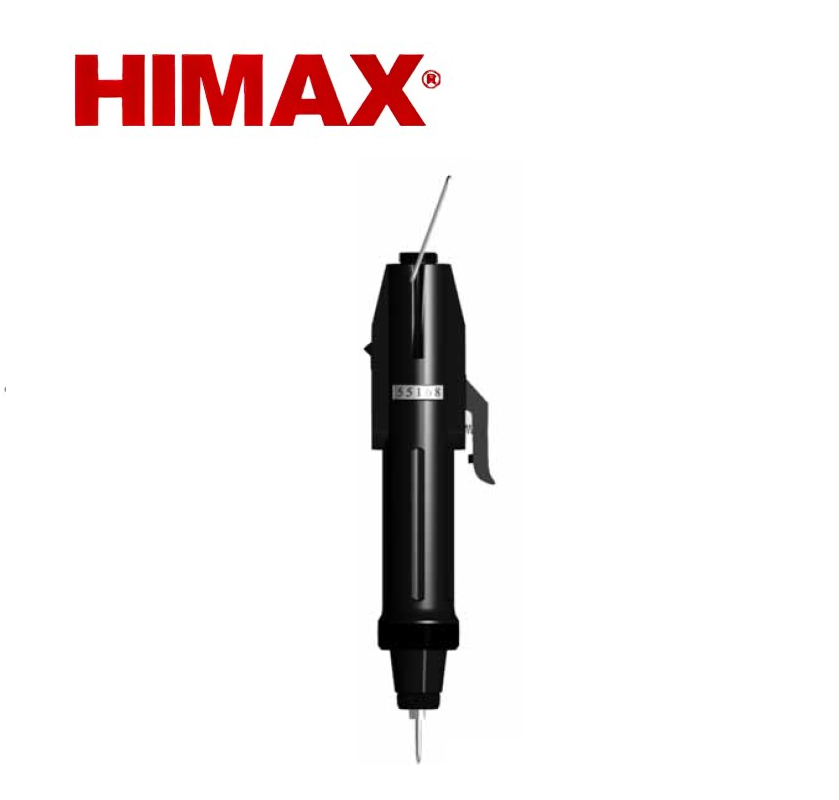

TL-5000
Description
As a leading Electric Screwdrivers manufacturer, we have a very strong research and development team, well established production capacity and very restrict quality control system to ensure our customer needs.
Torque Controlled Electric Screwdriver
Middle Torque Type 1.0~12.0 kgf-cm
Superior quality sustaining 15,000,000 cycles of test!
TL-4000/TL-5000/TL-6000 medium torque electric screwdrivers can be widely applied to most assembly tasks.
Stability
The unique 12mm oil-retaining bearing fixes position for transmitting stable torque output.
Accuracy
The light aluminum alloy clutch unit fitted with planet reduction gear lowers the mechanical friction coefficient and achieves the highest accuracy.
High efficiency
Two sets of thrust ball bearings are installed in the longitudinal axis of rotation to increase the live load pressing capacity by 30%.
Specification
| Model | TL-4000 | TL-5000 | |
| Starting Mode | Trigger Start | ||
| Output | Kgf-cm | 1.0~5.5 | 3.0~12.0 |
| Torque | N-m | 0.1~0.55 | 0.3~1.2 |
| Range | Lbf-in | 0.9~4.8 | 2.6~10.4 |
| Torque Adjusting Mode | Stepless Adjusting | ||
| No Load RPM (r.p.m.)±5% |
HI | 1000 | 1000 |
| LOW | 700 | 700 | |
| Applicable | Machine | 1.4~2.6 | 2.0~3.0 |
| Applicable Screw Range(mm) | Tapping | 1.4~2.3 | 2.0~2.6 |
| Applicable Bits (Optional) | H4 | H5 | |
| Deadweight (g) | 310 | 310 | |
