Himax Electric Screwdrivers

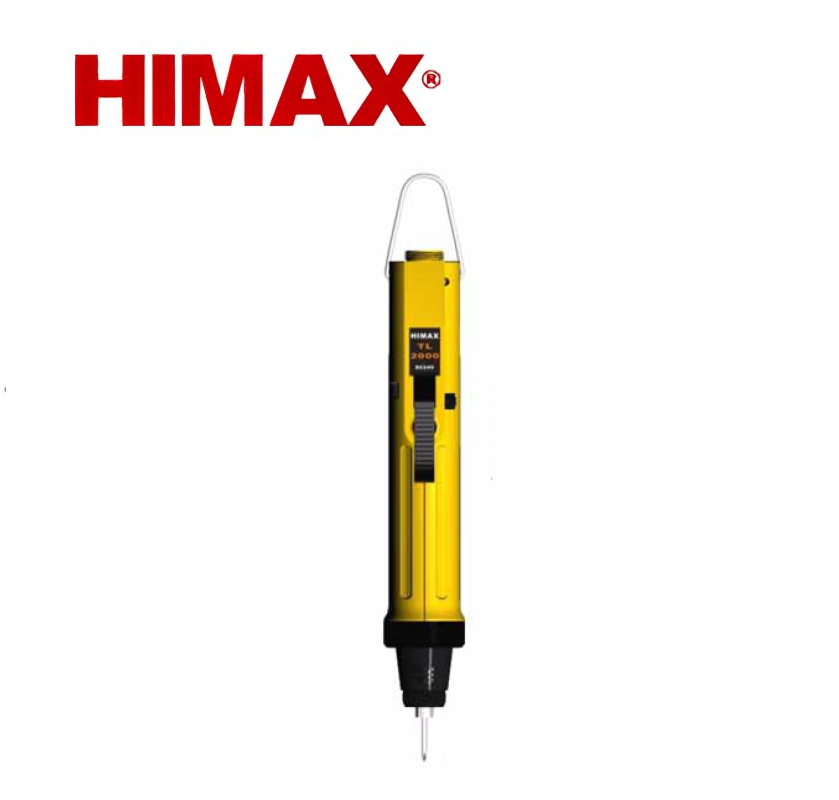

TL-2000
Description
Himax is a custom screwdriver manufacturer that has successfully delivered all types of Electric Screwdrivers to across the world. We take pride in our Electric Screwdrivers as high quality products with workmanship that matches.
Torque Controlled Electric Screwdriver
Low Torque Type 0.2~1.5 kgf-cm
Precise torque gives full power!
DC electric screwdrivers are more accurate in torque control and are more durable than AC electric screwdrivers.
Stability
Two sets of ball bearing are used to fix position for transmission system and attain stable torque output for rotary transmission.
Accuracy
Built-in needle roller bearing clutch unit lowers the mechanical friction coefficient and achieves the highest accuracy.
No noise
Performance motor has fast heat elimination, which enables the screwdriver keep low temperature during continued operation.
| Model | TL-2000 | TL-3000 | |
| Starting Mode | Trigger Start | ||
| Output | Kgf-cm | 0.2~1.5 | 0.5~2.5 |
| Torque | N-m | 0.02~0.15 | 0.05~0.25 |
| Range | Lbf-in | 0.17~1.28 | 0.43~2.15 |
| Torque Adjusting Mode | Stepless Adjusting | ||
| No Load RPM | HI | 1000 | 1000 |
| (r.p.m.)±5% | LOW | 700 | 700 |
| Applicable | Machine | 1.0~2.0 | 1.0~2.3 |
| Applicable Screw Range(mm) | Tapping | 1.0~1.7 | 1.0~2.0 |
| Applicable Bits (Optional) | H4 | H4 | |
| Deadweight (g) | 310 | 310 | |
