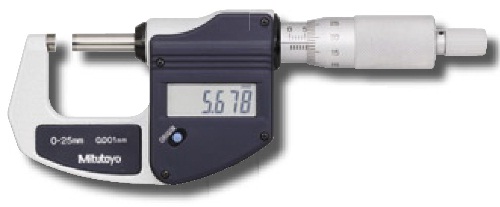

Digimatic Micrometer MDC-S
Features
• The new design of the MDC-S allows for simple operation.
• A larger LCD display allows the user to read all measurements with ease.
• The addition of the automatic power (ON/OFF) function assures long-lasting battery life.

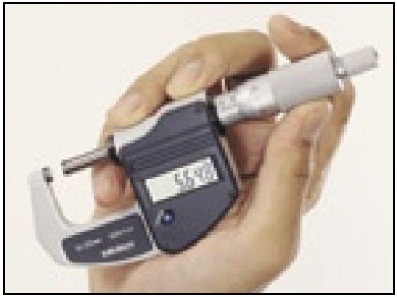

• Slim, lightweight construction for easy, one-handed operation as compared to a conventional digital micrometer.
Enhanced competitive position by the newly mounted function and reliability
- The mounted Mitutoyo original electromagnetic-guidance-type rotary sensor has enhanced robustness against dust or gap and improved digital reliability more
- Elongate battery lifetime (existing model 1.2yrs, new model 2.4yrs) has realised by a button-shaped battery (SR44)
- Added: Anti-slip finish for measurement in hand
- Safety is guaranteed by a function-lock system
- New ratchet thimble has improved one-hand operability
| LCD Resolution | Measuring Range | Order No. | Accuracy at 20?C | Mass | Remarks |
| .00005"/ 0.001mm | 0-1" (0-25mm) | 293-831 | ±.0001" (±2µm) | .605 lbs.(275g) | Origin key, inch/mm key, ratchet stop |
| 293-832 | ±.0001" (±2µm) | .616 lbs.(280g) | Origin key, inch/mm key, fiction thimble | ||
| 0.001mm | 0-25mm | 293-821 | ±2µm | 275g | Origin key, ratchet stop |
